Introduction
Cavitation is one of the most common and destructive problems in pumping systems. It occurs when vapor bubbles form in a liquid due to low pressure and then collapse violently when carried into high-pressure zones of the pump. The result is noise, vibration, and serious damage to pump components.
If left unchecked, cavitation can reduce efficiency, shorten pump life, and lead to costly repairs or replacements. Understanding what cavitation is, why it happens, and how to solve it is essential for anyone responsible for operating or maintaining pumps.
What is Cavitation?
Cavitation happens when the pressure inside a pump drops below the liquid’s vapor pressure. This allows bubbles or cavities to form in the liquid. When these bubbles move to a higher-pressure area, they collapse with extreme force, releasing shockwaves that erode the pump’s internal surfaces.
This phenomenon is most common in centrifugal pumps but can occur in other pump types as well.
Causes of Cavitation
Inadequate Net Positive Suction Head (NPSH)
The most common cause of cavitation is insufficient Net Positive Suction Head (NPSH). If the available suction pressure (NPSHa) is lower than the required suction pressure (NPSHr), cavitation will occur.
High Pump Speed
Running pumps at excessive speeds lowers suction pressure, increasing the likelihood of cavitation.
Excessive Suction Lift
When pumps lift water from deep sources, suction pressure may drop too low, leading to bubble formation.
Restricted Suction Lines
Clogged strainers, undersized pipes, or long suction lines cause flow restrictions that reduce suction pressure.
High Fluid Temperature
Hot fluids lower vapor pressure, making it easier for bubbles to form even at normal pressures.
Symptoms of Cavitation
Unusual Noises
Cavitation often produces a sound similar to gravel or marbles rattling inside the pump.
Vibration
The collapse of vapor bubbles creates strong vibrations that can damage bearings and seals.
Reduced Pump Performance
Cavitation reduces flow and head, making the pump less efficient.
Visible Damage

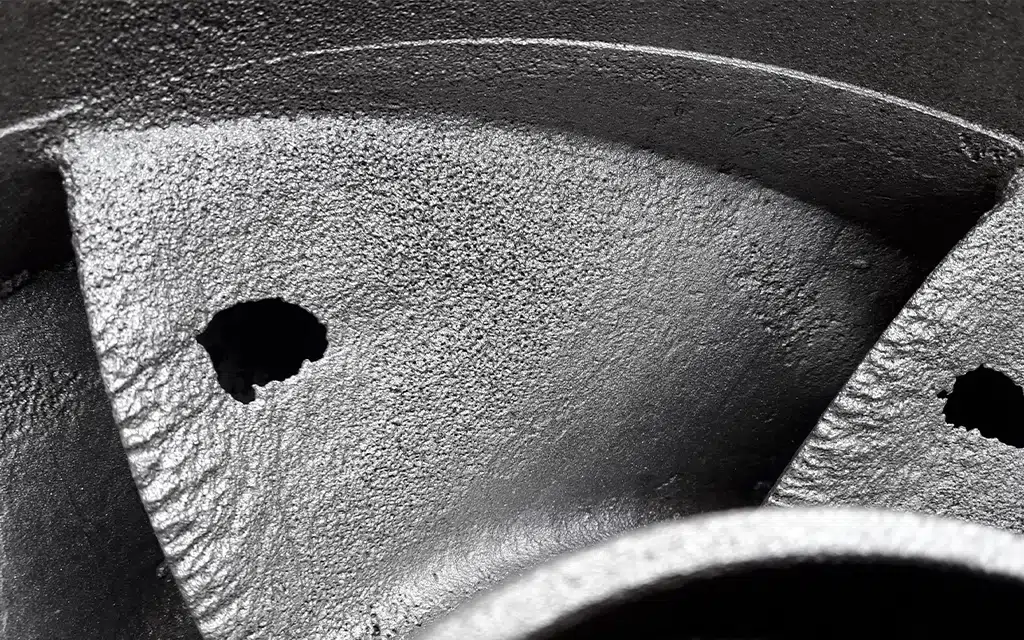

Pitting or erosion on impellers, casings, and wear rings is a clear sign of prolonged cavitation.
Overheating
Cavitation disrupts fluid flow, reducing cooling and causing pumps to overheat.
Types of Cavitation
Vaporization Cavitation
Occurs when liquid pressure falls below vapor pressure due to poor suction conditions.
Vane Passing Cavitation
Happens when pressure differences between pump impeller vanes cause localized vapor bubbles.
Internal Recirculation Cavitation
Occurs when liquid recirculates inside the pump instead of flowing forward, creating low-pressure zones.
Air Aspiration Cavitation
Caused by air leaks in the suction line that introduce bubbles into the pump.
Solutions to Cavitation
Improve Suction Conditions
-
Shorten suction piping.
-
Use larger diameter pipes to reduce friction losses.
-
Keep suction lift to a minimum.
Increase Available NPSH
-
Lower the pump installation level closer to the liquid source.
-
Reduce fluid temperature to increase vapor pressure margin.
-
Minimize fittings, valves, and bends in suction lines.
Reduce Pump Speed
Lowering rotational speed reduces cavitation risk, though it may also reduce flow rate.
Maintain Proper System Design
Ensure pumps are properly sized for the application. Oversized pumps often run too far from their best efficiency point, increasing cavitation risk.
Regular Inspection and Maintenance
Check for worn seals, damaged impellers, or clogged filters that may contribute to cavitation.
Preventing Cavitation in New Installations
-
Select pumps with proper NPSHr ratings for your system.
-
Design suction lines with minimal restrictions.
-
Ensure the system operates near the pump’s Best Efficiency Point (BEP).
-
Monitor pump performance regularly for early detection.
Conclusion
Cavitation is a destructive phenomenon that can cripple pumping systems if not addressed. By understanding its causes, recognizing early symptoms, and applying effective solutions, operators can prevent costly damage and downtime. The key lies in proper system design, correct pump selection, and regular maintenance.
FAQs
Q1: What is the main difference between cavitation and air entrainment?
Cavitation occurs when vapor bubbles form and collapse inside the pump, while air entrainment comes from external air leaks entering the pump.
Q2: Can cavitation destroy a pump?
Yes, prolonged cavitation can erode impellers, damage seals, and lead to complete pump failure.
Q3: How do I know if my pump is cavitating?
Unusual noise, vibration, reduced flow, and visible pitting on pump parts are strong indicators.
Q4: Is cavitation more common in centrifugal pumps?
Yes, because centrifugal pumps rely heavily on suction conditions, but other pumps can also suffer from cavitation.
Q5: Can variable frequency drives (VFDs) help reduce cavitation?
Yes, by controlling pump speed, VFDs can reduce suction stress and prevent cavitation.
